All Walls and Floors are covered with 19mm Self-Adhesive and Aluminum Foil Rubber Insulation.

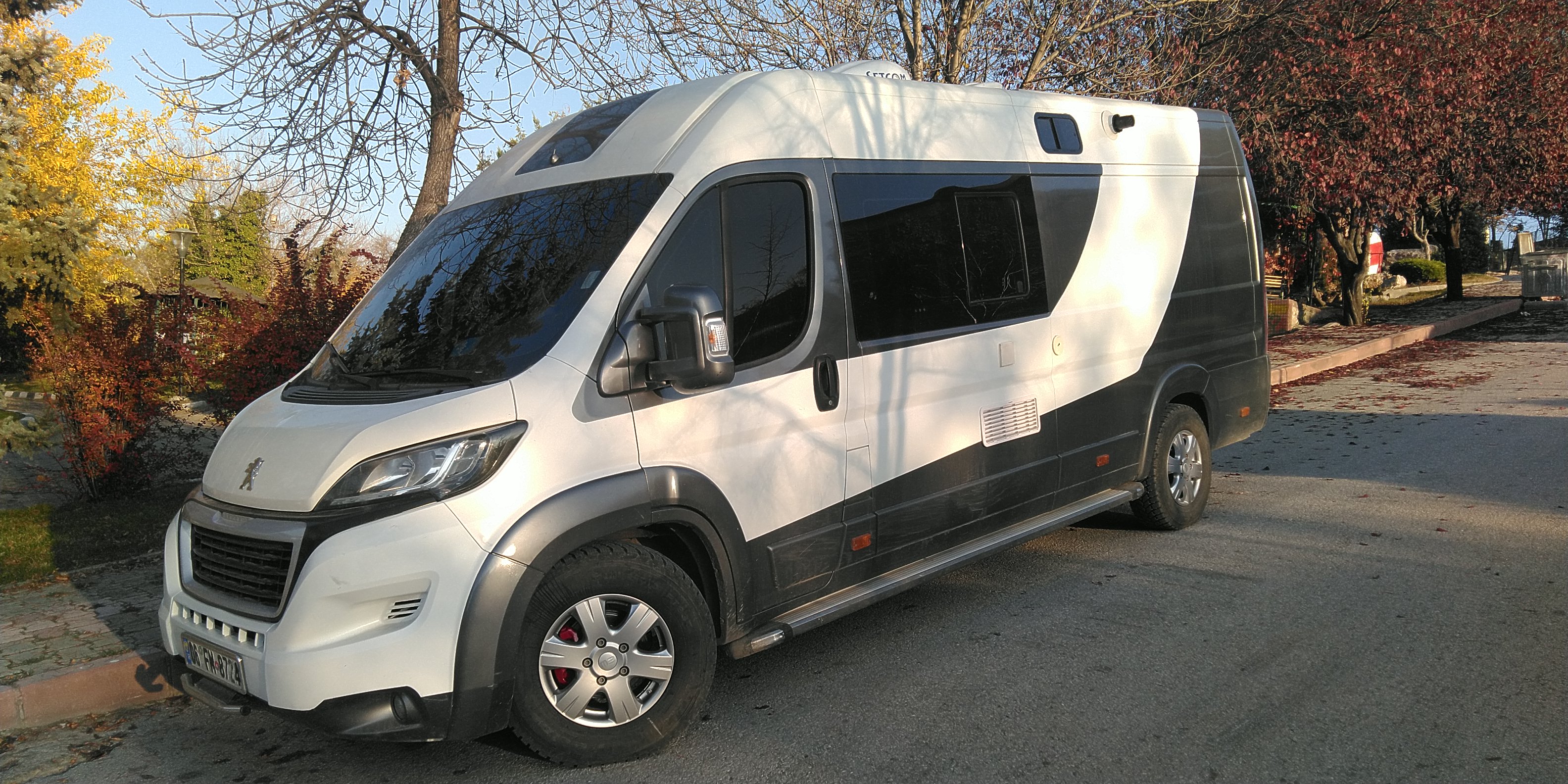

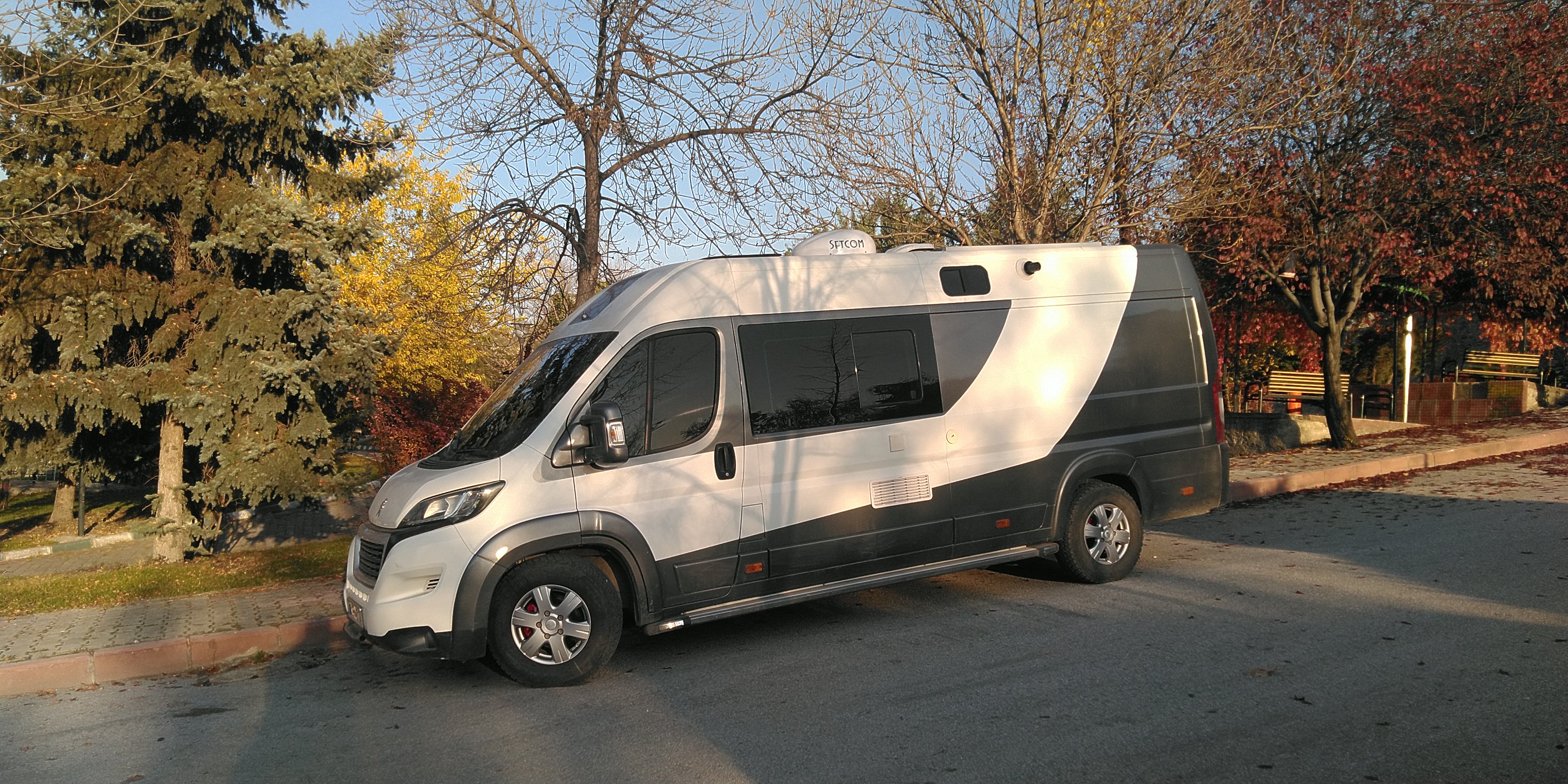

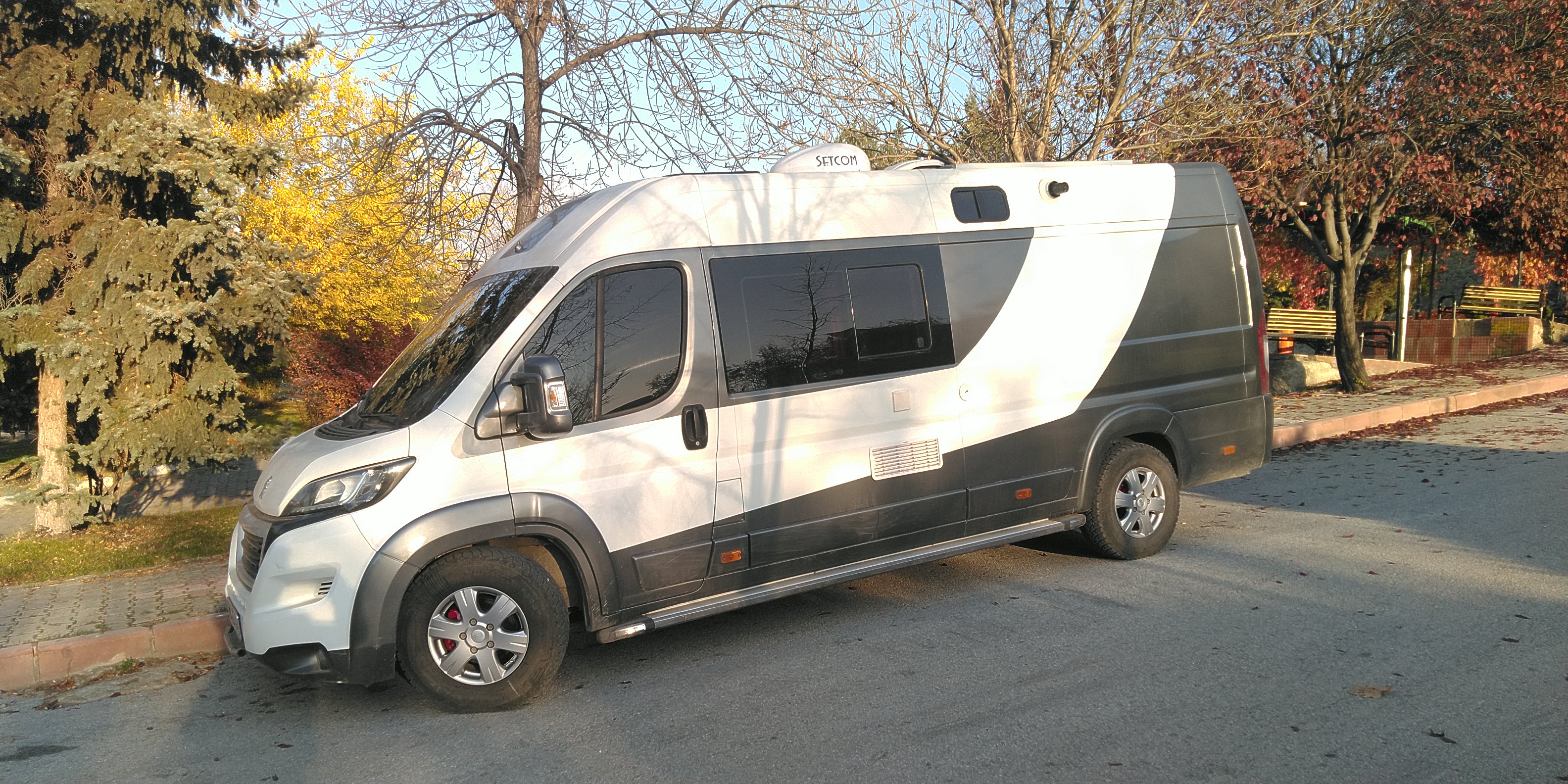

Vehicle Exterior Painting Procedures:
The vehicle was originally white in color, but a double color application was made using gray.
Color change processes were made available to the system during the inspection.
Vehicle Window and Ventilation Systems:
A vehicle type window system was used on the vehicle, one large on each side, one small in the bathroom, and two medium in size in the bed area.
A Kormas 12 Volt Ceiling Ventilation System was used on the ceiling in the bathroom shower area.
Vehicle Air Conditioning System:
There is a ceiling-mounted, engine-driven air conditioning system.
This air conditioning system has two blowing points facing the driver and passenger cabins.
There are also blowing points for the air conditioning system facing the rear caravan section.
Vehicle Heating System:
Webasto Airtop 2000 STC Dry Type heating System was used in the vehicle.
One digital control panel of the system is mounted on the door.
Furniture System:
All side walls, partition walls and overhead storage areas are manufactured with Poplar Counter coated with LAM.
Caravan type push-pull furniture locks are used on all covers.
Solid Pine Kitchen Countertop with varnish coating.
Walnut Wood adjustable height table.
Bed System:
At the back there is a modern double bed with dimensions 182X147 and 20 cm height.
In the front part there is a children's bed with dimensions of 125 cm x 72 cm.
Clean Water System:
Two 120 Liter, Black Colored Water Tanks in the System. The warehouses are connected to each other in parallel.
One clean water filling cap at the back.
Mains clean water connection inlet under the vehicle. Automatic filling control is done with a float system. It is the feature of taking water into the tank as the water decreases.
One Digital Clean Water Indicator.
PPRC Pipe plumbing.
One Seaflo Accumulator Tank Integrated 3.0GMP / 5.5 GPM Water Pump.
Wastewater System:
Two 105 Liter, Black Colored Water Tanks are mounted under the chassis.
There is one Wastewater Indicator for each tank.
It is connected to a Seaflo Macerator Wastewater Pump and hose.
Possibility to use both warehouses simultaneously or separately.
Gas Plumbing System:
There is one Aygaz Maksi Tombul 12 kg, which has a high propane content and is resistant to freezing.
For the gas installation, 10mm diameter, 20 BAR pressure resistant, fireproof hose and special clamps were used.
A Wi-Fi connected Gas Sensor is mounted in the kitchen area.
Satellite TV System:
One Setcom STC 200 Mobile Satellite Antenna was used.
It has two Navigold Brand 12 TV systems, one in the living area and one in the back.
Solar Energy System:
There are two Polycrystalline 175 Watt Solar Panels.
A Victron Blue Solar PWM Pro Charge Controller is included in the system.
A total of two 200 Ampere NOVA brand Solar Batteries were installed.
Electronic Control Panel:
PC210-ST Control panel Used.
Vehicle and Life Battery Level indicator
Clean and Waste water Level Indicator
Water Pump On/Off
Lighting On/Off
Lighting system:
A total of 5 pieces of Sanel Brand lighting were used on the interior ceiling and one on the exterior.
Two 12 Volt book reading lights in the bed compartment.
A 12 Volt spot lighting was used in the front part.
Decorative Blue LED lighting was used in the corridor and WC.
Luggage compartment LED lighting.
Electrical System:
Built-in Solar Power System.
External 220 Volt mains input connection and cable.
Linetech EC-315 Battery Charging System, 12 Volt, 15 Ampere.
Vehicle battery charging feature with mains 220 or solar energy
Victron 120 Ampere Vehicle Battery and Life battery disconnector isolator.
Request 220 Volt, 2,000 Watt Full Sinus Inverter
220 Volt AC electricity in the interior and Luggage compartment.
Remote Control System:
Indoor Lighting auto On/Off.
Outdoor lighting On/Off.
Android Car Radio On/Off.
Wastewater Macerator System On/Off
Kitchen and Equipment:
Ferre Brand built-in double gas stove.
Teka Brand single bowl sink.
Caravan special hot and cold water mixer
Electrolux ESF2400OS Countertop Dishwasher with 6 Programs.
123 Liter, 12 Volt Undercounter Refrigerator.
Sufficient kitchen storage space.
Bathroom and Equipment:
Daxom 11 Liter Gas Water Heater and Hot Water System
TMG 12 Volt Toilet with Macerator.
TMG Bidet Faucet.
Luxury bathroom sink and cabinet.
Outdoor Shower System.
Luxury Bathroom mirror set
Luxury Bathroom mirror set
Large Luggage Space:
LG F70E1UDNK1.ASSPLTK 700 Spin 3.5 kg Mini Washing Machine
